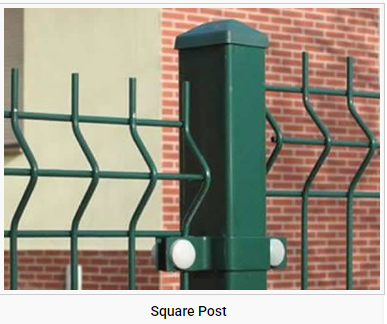

3D Fence （V Bend Fence)
- Material： high quality low carbon steel wire, galvanized wire or stainless steel wire
- Mesh size： 75x150mm
- Wire diameter： 2-5mm
- Column： 48*1.2mm
- Specification： 1800x3000mm
- Surface treatment： Spray galvanizing
- Connection method： galvanized, PVC, PE-coated
- Scope of application： Airports, ports, terminals security
- Parameters
- Material： high quality low carbon steel wire, galvanized wire or stainless steel wire
- Mesh size： 75x150mm
- Wire diameter： 2-5mm
- Column： 48*1.2mm
- Specification： 1800x3000mm
- Surface treatment： Spray galvanizing
- Connection method： galvanized, PVC, PE-coated
- Scope of application： Airports, ports, terminals security
3D Fenceis is a type of welded mesh panel made by connecting high-quality low-carbon steel wire, galvanized steel wire, or stainless steel wire to metal columns. Its unique V-shaped curved design is both modern and attractive. This sturdy and smooth fence panel is widely used for safety protection in construction sites, residential areas, sports fields, warehouses, highway service areas, train stations, and other locations.
Common specification:
| Panel Height | Panel Width | Wire Dia. | Profiles | Mesh Size | Post Height | Post size |
| 630mm | 2500mm | 5mm | 2 | 200x50mm | 1100mm | 60x40x2mm |
| 1030mm | 2500mm | 5mm | 2 | 200x50mm | 1600mm | 60x40x2mm |
| 1530mm | 2500mm | 5mm | 3 | 200x50mm | 2100mm | 60x40x2mm |
| 1730mm | 2500mm | 5mm | 3 | 200x50mm | 2400mm | 60x40x2mm |
| 2030mm | 2500mm | 5mm | 4 | 200x50mm | 2600mm | 60x40x2mm |
| 2430mm | 2500mm | 5mm | 4 | 200x50mm | 3100mm | 60x40x2mm |
3D Curved Welded Wire Fence Applications:
• Primarily used on both sides of bridge protection zones along highways and railways.
• Security applications for airports, ports, and docks.
• Municipal installations in parks, lawns, zoos, ponds, roads, and residential areas.
• Protection for hotels, supermarkets, and entertainment venues.

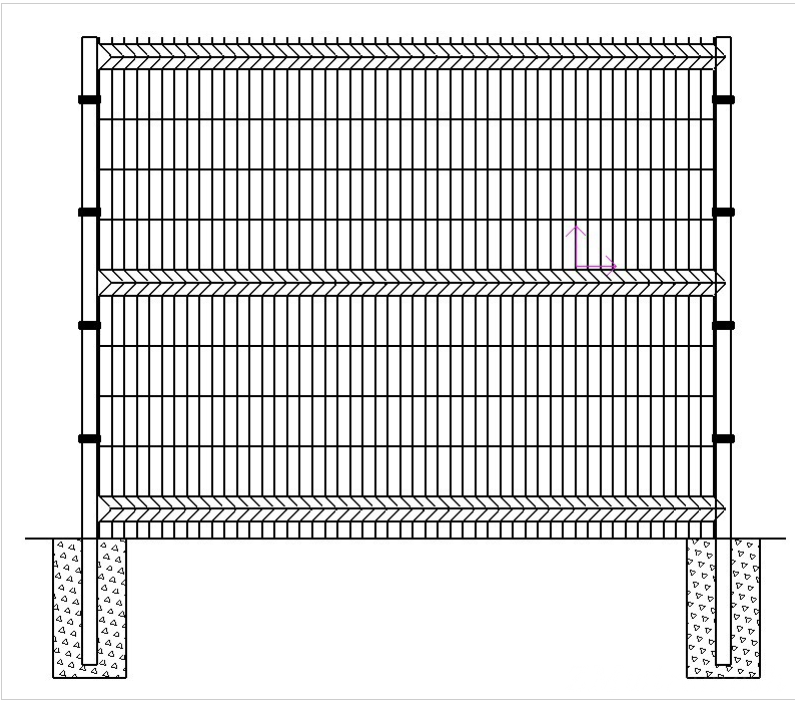

Post install of 3d curved mesh fence:
